Introduction

IPD22A is a comprehensive system designed for managing large-volume inventory, potentially millions of different items. It includes hardware units, cloud deployments, and various configurable settings, and is scalable by deploying hardware units to different sites to collect and process data. The PCBs in the hardware units are highly modularized, with core PCBs being shared and HATs being swappable for different functions.

IPD23A

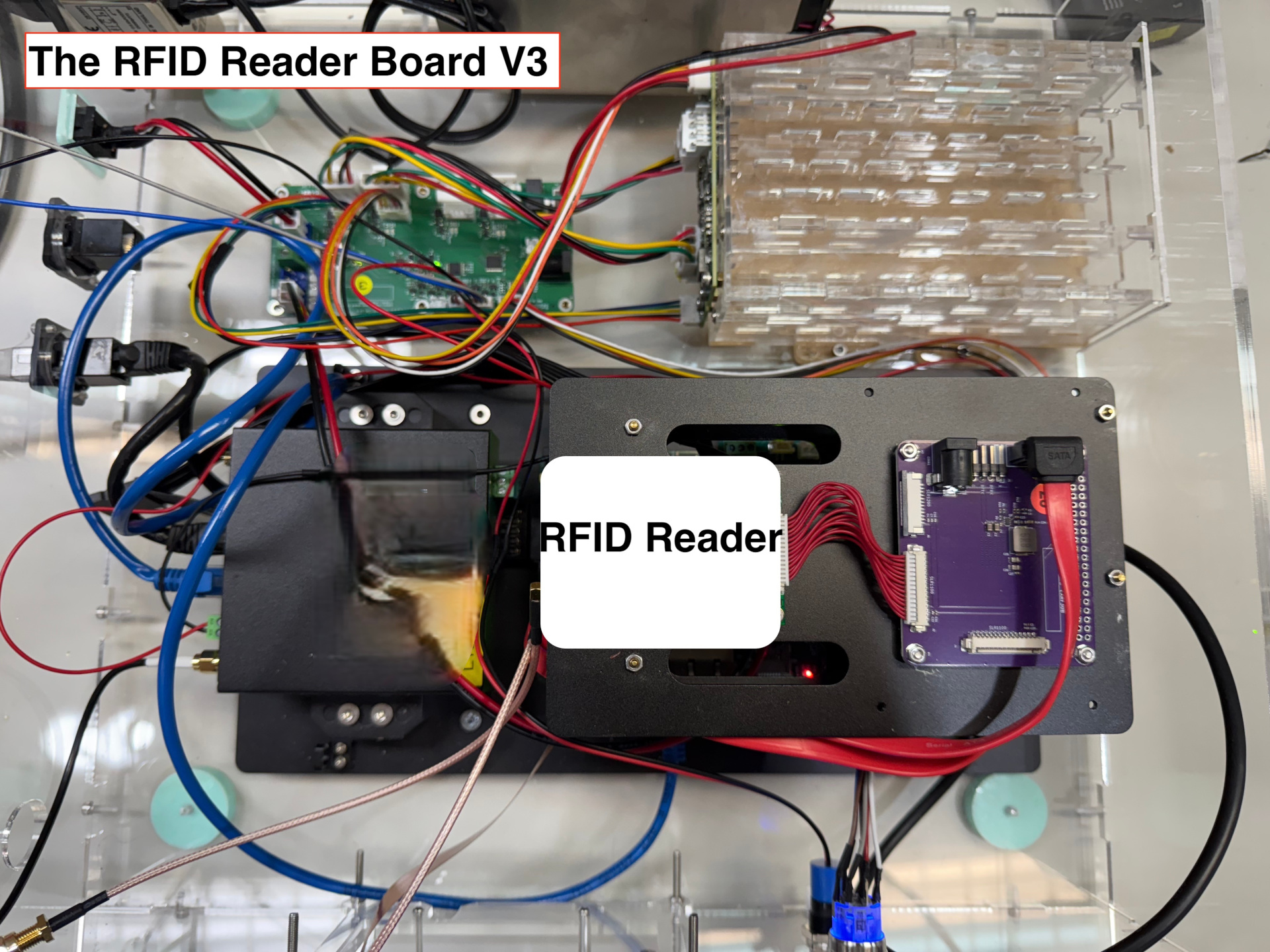

Inside Standard Unit Standard Unit

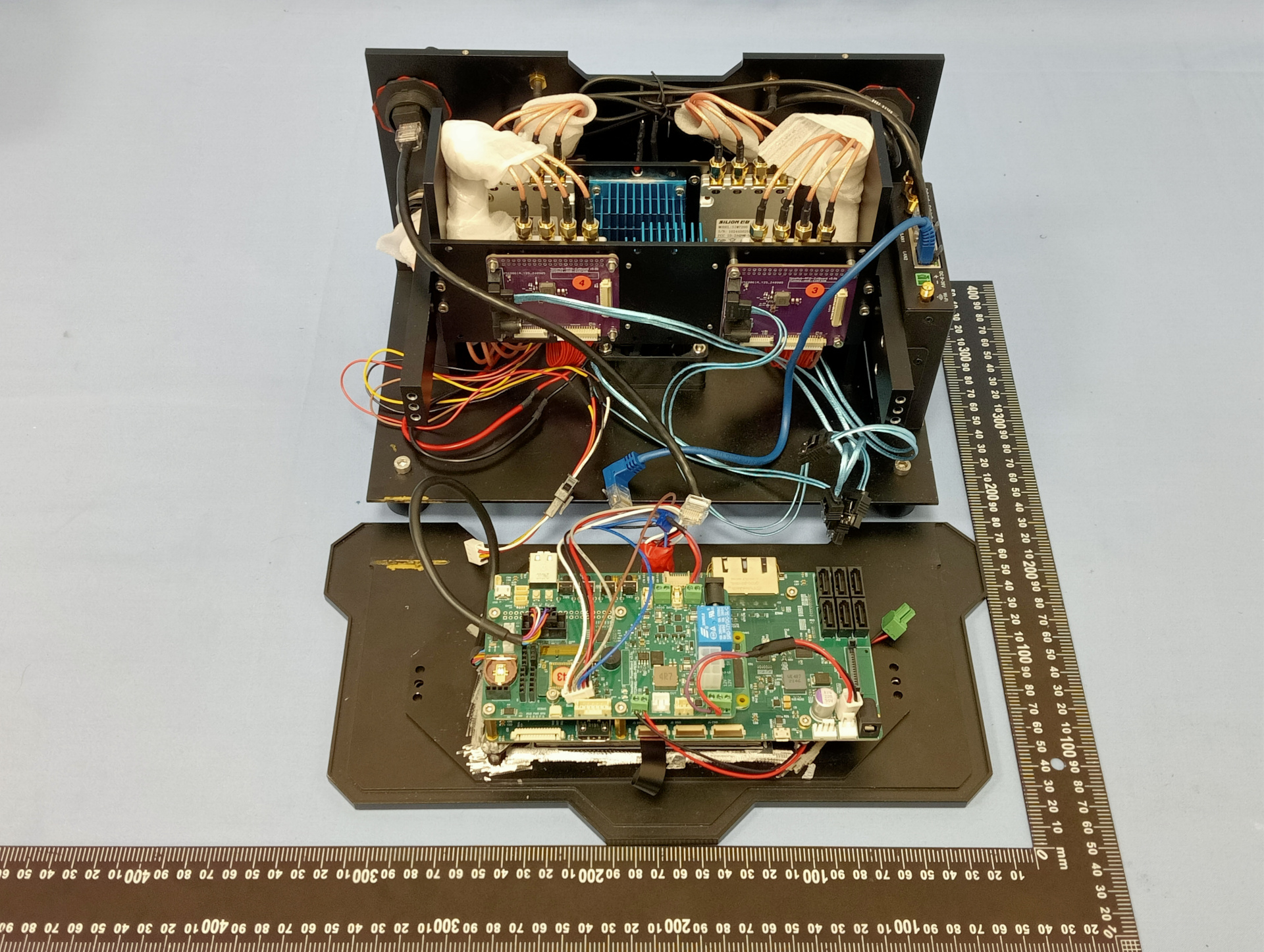

Inside MZR

Key Capabilities and Features

  • Large-Volume Inventory Management: IPD22A is capable of managing a vast inventory, handling millions of different items.

  • Scalability: The system is scalable through the deployment of hardware units at various sites, which collect and process data from all units.

  • Edge Computing and Data Synchronization: Hardware units possess their own data storage and computing power for edge computing. They are designed to maintain data synchronization with the cloud in critical environments.

  • RFID Scanning: Hardware units can scan RFID tags in various environments, including warehouses and walk-in freezers.

  • RFID Tag Printing: The units can drive RFID tag printers, print tags, and track the printed information.

  • Automated Inventory Counting: Once IPD22A and its hardware units are deployed, manual scanning with handheld RFID scanners during cycle counts is eliminated.

  • Various Hardware Unit Types:

    • standard: Standard unit (PrinterHub)
    • compact: Compact unit without LTE modem
    • mobile: Mobile unit with battery
    • portal: Portal unit with RFID readers
    • multiple antennas: Advanced unit with multiple RFID modules

  • Fleet Management of the Hardware Units

    • Hardware Unit Configuration and DFU via OTA
    • Sensor Aggregator

  • Cloud Deployments: Support multiple cloud deployment profiles

    • dev: Development environment
    • production: Default production
    • sandbox: Sandbox for development

  • Monitoring and operating on Web Pages

    • Database management
    • Communication Settings
    • System Settings
    • Security Settings
    • Printing Preview
