Introduction to the Robotics Arm of the Surgical Microscope

The MD22A surgical microscope system is designed for ophthalmic, dental, ENT, and other surgical procedures. Its architecture includes a robotic arm, optical head, remote controller, and floor stand, all engineered to provide precision, reliability, and seamless integration in operating environments.

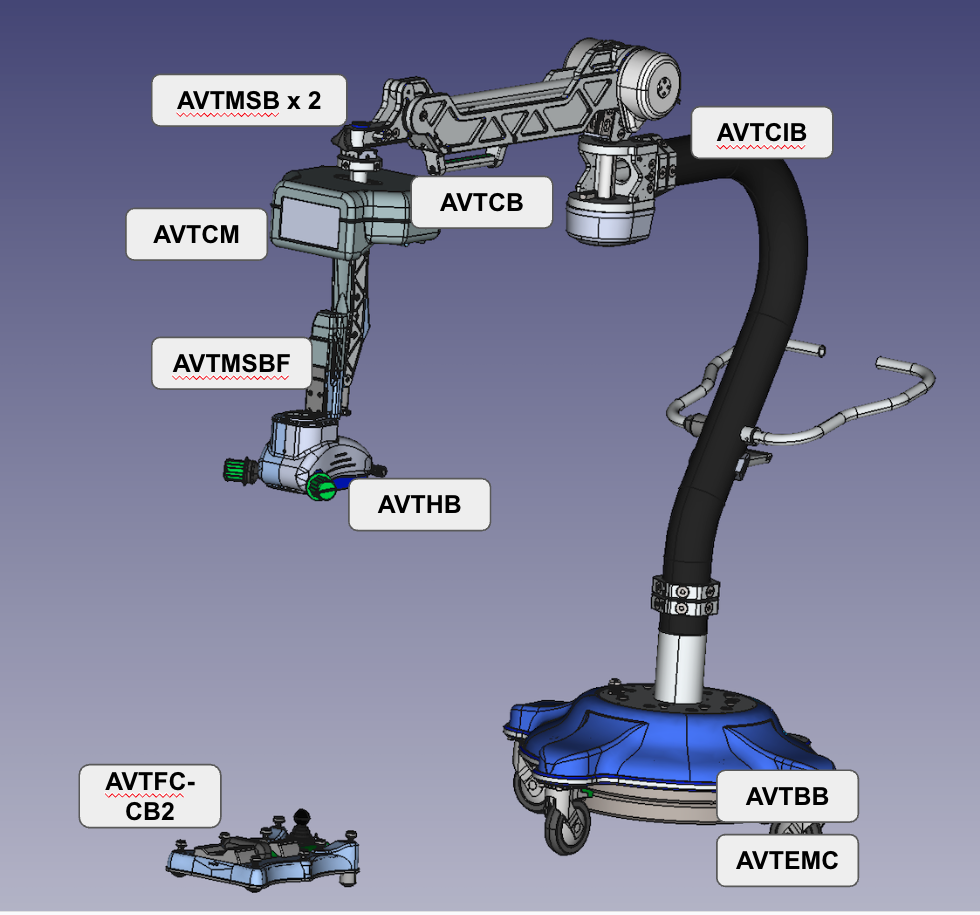

robotics arm of the surgical microscope
AVTFC AVTCB

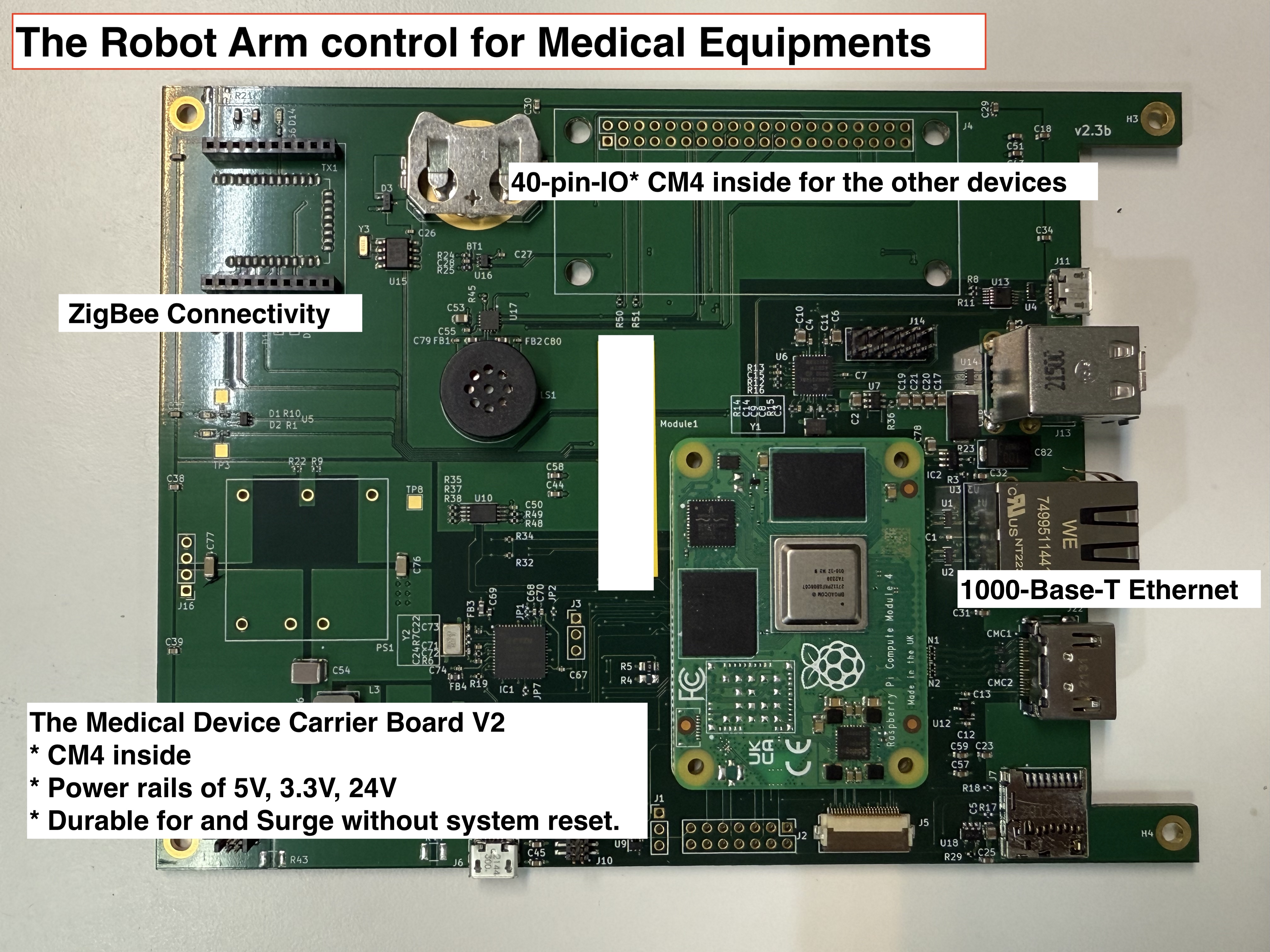

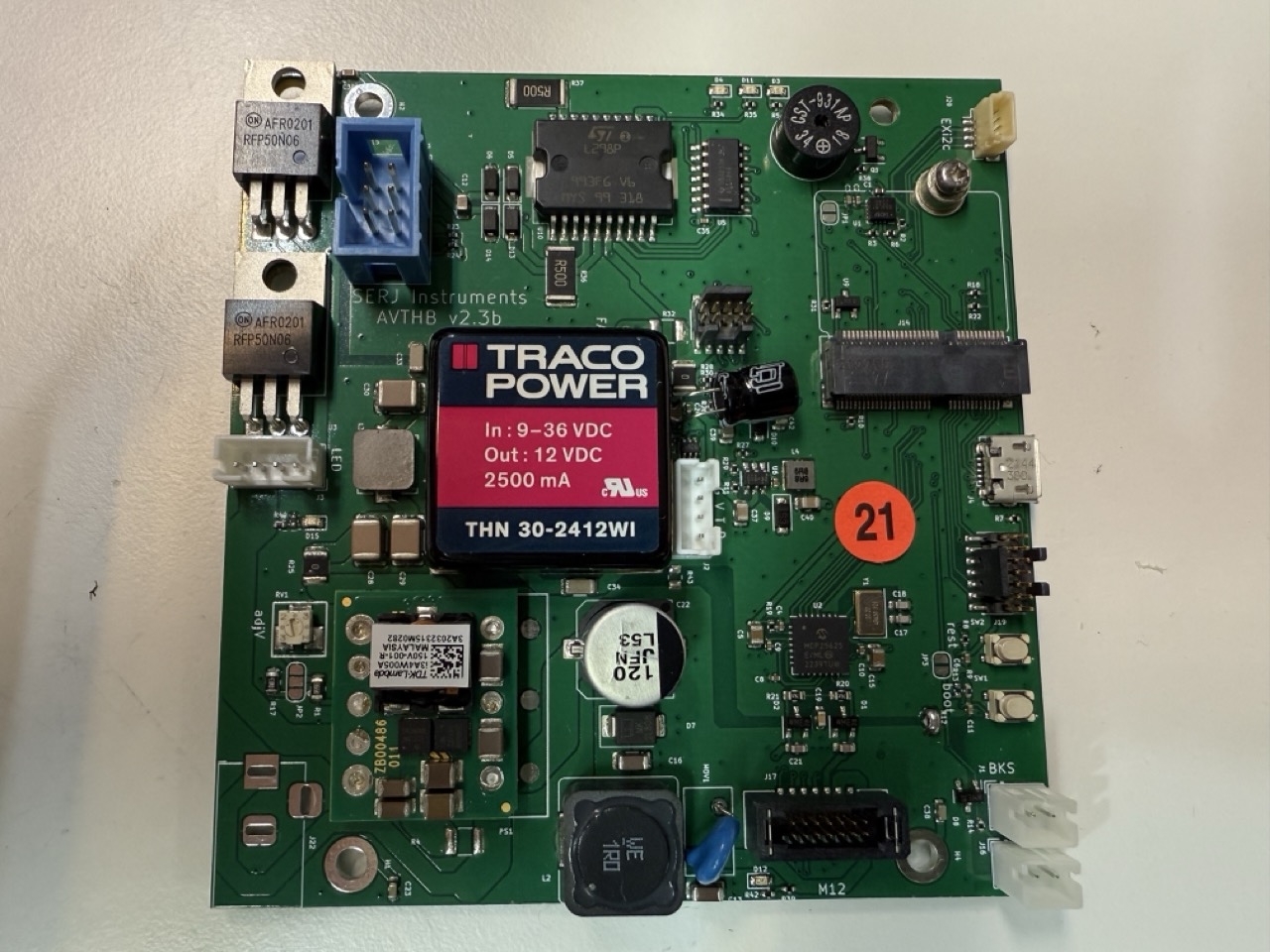

AVTCM AVTHB

Key Features & Enhancements

Support Stand and Base Structure

  • EMC Filter Board: Filters AC power noise, improving resistance to electromagnetic interference.
  • Power Distribution Board: Provides efficient power management and stable distribution to RSM-8 and RSM-16 motors, designed to handle sudden high current loads.
  • Boom Arm & Brakes: Equipped with electromechanical brakes that lock automatically when handles are released, ensuring stability during surgeries.
  • M12 High-Power Cable: Utilizes an M12 cable to transmit high power to the microscope, supporting illumination, motor movements, and power delivery to other connected devices.

Remote Controller

  • Controller: Dedicated pedals for fine focus and zoom, and a joystick for XY unit navigation.
  • Rechargeable Battery: Built-in battery automatically recharges when docked on the floor stand.
  • Seamless Pairing: Automatic pairing with the Aventa head, supported via wired RS232 for reliability.
  • Frequency Key Code Scanning: Enables real-time raw data transmission and secure pairing.
  • M.2 Expansion Slot: Supports future upgrades and customization.
  • Fallback Wired Mode: Can be hardwired to the system in case of interference or depleted battery.

Microscope Main Structure

  • Illumination Technology: Patent-pending LED-based coaxial and oblique illumination system, providing superior red reflex stability and adjustable intensity.
  • Configurable PWM Settings: Fine-tuned for illumination and motor control.
  • Motorized Movements: Zoom, focus, tilt, and XY-stage motors provide smooth, precise adjustments.
  • Telemetry Support: Real-time system health and performance monitoring.
  • Motor Mileage Tracking: Logs movement data for predictive maintenance.
  • Dual-Mode Communication: Supports both wired and wireless operation with the remote controller.
  • User Interface: Touchscreen GUI with customizable profiles and auto-center reset function.
  • Custom Bootstrap Splash Screen: Displays basic device information at startup.
  • Optimized Bootstrap Time: Reduced initialization for faster readiness.
  • Cable Connection Check: Automatic detection of physical connections.
  • Enhanced Frame Protocol: Low-latency communication for responsiveness.
  • Motor Limiters: Define safe boundaries to prevent collisions.
  • Connector Versatility: M8, DC barrel, and Pogo connector support for integration with devices like image inverters.
  • USB-C Integration: Compatible with computer vision systems.
  • M.2 Expansion Slot: Provides flexibility for troubleshooting and field upgrades.
  • Remote Connectivity: Internet-enabled for firmware updates, remote management, and fleet control.
